Isolated Tissue Organ Baths Systems:
EZ-Bath™ 4B (Multi-Channel)

“ We are really impressed with the system...”

“ We have an EZ-Bath set-up which has been excellent.”

“I must congratulate you on the system you have developed and I hope to use them as our main systems...”

----- Comments by Biomedical Scientists on EZ-Bath & EZ-NeWMyo Systems


EZ-Bath™ Tissue Organ Baths, are high-performance, user friendly multi-channel tissue/organ pharmacology systems. The state-of-the-art organ bath is designed, based on many years of combined experiences of various scientists. The EZ-Bath™ have been used for pharmacological and preclinical studies of isolated vascular or non-vascular tissues, skeletal or smooth muscles, cardiac tissues/organs (e.g. atria, papillary, sinus node), and tissues from respiratory/lung, urinary tract, kidney, and intestine or colon, etc.

The EZ-Bath™ features multiple innovative, proprietary functions proven to ease tissue organ studies in all phases of experiments: tissue mounting, oxygenation control, preset tension, (stimulation), recording and data marking, waste disposal/washing, & data analyses. These functions allow more efficient experiments and producing of more and consistent isometric or isotonic data with sensitivity up to 0.2-0.5mg, across channels and experiments, in comparison to most others’ systems. In addition, the EZ-Baths systems are much more affordable and cost $3000 to $8000 less than others.

New functions include (1). embedded bio-sensing (nitric oxide, oxygen, glucose, epinephrine, pH) and/or bio-potential recording; (2). automated (optional) or manual (one-push valve) buffer filling, emptying and washing; (3). new tissue holders with built-in ring, spiral or zigzag Pt. stimulation electrodes. (4). upgrades, when appropriate, to EZ-NeWMyo™ Micro Vessel Needle and Wire Myograph or EZ-Fusion™ Tissue Superfusion System.


EZ-Bath have been widely used for pharmacology or toxicology study of tissue reactivity, morphology, and length-tension relationship, nitric oxide roles in tissue functions, etc. in following isolated biological tissues:

  • Isolated vascular rings: smooth muscle or endothelium cells;
  • - e.g., vascular muscle tone in relation to vasodilators or vasoconstrictors (acetylcholine, adenosine, epinephrine, etc.)

  • Isolated smooth/skeletal tissues or organs:
- skeletal muscles: e.g., roles of nitric oxide in skeletal muscle repair
- cardiac (atria, papillary, sinus node): e.g. study of heart muscle tone & nitric oxide-mediated tissue injury.
- adipose tissue
- bronchi, respiratory tract tissue
- urinary tract tissues
- intestine and colon tissues, etc.

Nitric oxide has been implicated in the functions of many biological tissues: adipose, skeletal muscle repair (L.I. Filippin, etc., Nitric Oxide, Vol 21, p 157-163, 2009), and vasopressure of blood vessels, etc. Our EZ-Bath-x-SED systems with bio-sensing option allows real time recording of extracellular nitric oxide concentration, an important tool to study these bio-functions.

Partial List of Research Institutions with EZ-Bath and/or EZ-NeWMyo Systems:
Bond University (Australia)
Georgia State University
Grand Valley State University
Linkoping University (Sweden)
Lithuania Kuanas Medical University (Lithuania)
University of Michigan
University of Missouri at Columbia
University of Missouri at Kansas City
University of New South Wales (Australia)
Neurogen, Inc.
University of North Texas
Ohio Northern University
University of Sunshine Coast (Australia)
University of Toronto (Canada)
University of Western Ontario (Canada)


EZ-BATH SYSTEM ADVANTAGES: Efficiency, Consistency, Versatility & Low Cost
(Detailed comparison charts available only for potential customers at

1. Innovative Functions aimed at Excellent Experiment Efficiency & l Data Consistency:

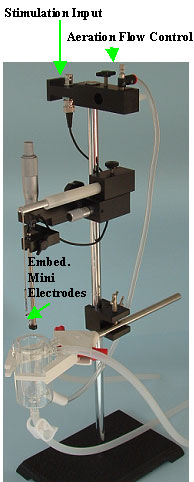

  • A versatile measure & position bracket (MP20), with mounting sites for tissue holders and biosensors or recording electrodes;

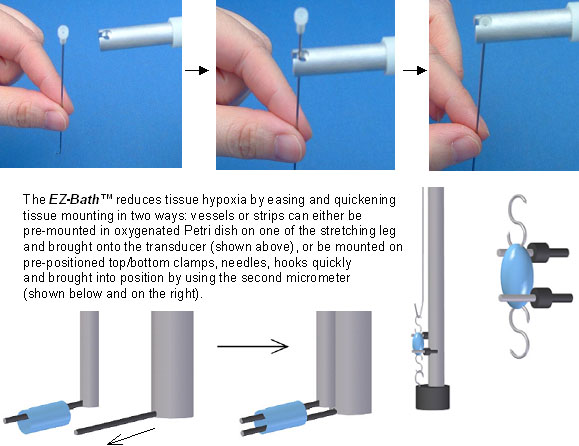

  • Quick, proprietary tissue mounting methods exemplified by a range of mini tissue holders, with or without embedded stimulation electrodes, for strip tissue/organs and vascular rings;
  • 2-dimensional micro adjustments for consistent preset tissue tension and positions, across tissue channels and experiments, and for easing tissue mounting;
  • Fixed point of force application and reliable contractile signal transduction even for mini-contractile as small as < 0.5mg;
  • Low-noise low-noise bridge amplifier with integrated digital sensor system BRAMDA-400/800 or i-DAQ data acquisition system and i-DAQChart software full of user-friendly features for recording, display, review and analyses;
  • One-push valve for buffer filling, emptying and bath cleaning, with fully automated option, of pre-warmed and oxygenated buffer;

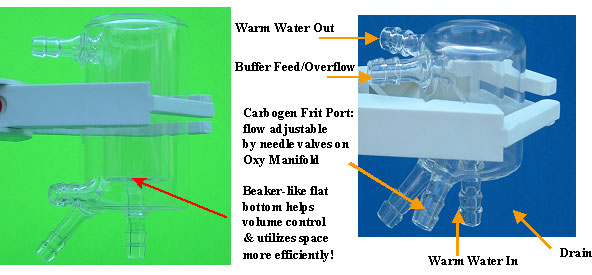

  • Convenient carbogen flow distribution and control, manifold-based waste disposal, clean/organized tubing paths and channels, jacketed 6-port bath chambers from 2, 5, 10, 25 to 50ml;
  • Compact size, with four-channel system EZ-Bath-4B, measures 55x30cm (21.8x11.8in) in length x width table space.

  • 2. Versatile, Modular and Scalable Functions: From Mini Tissue Holders, Sub-assemblies, System to Bio-sensing
  • Modular tissue holders, manifolds, subsystems and overall system design make the EZ-Bath versatile, scalable, and capable of studying different type, size and number of tissues/organs on the same set-up, with daisy-chain up to 8-, 16- or 32- channels;

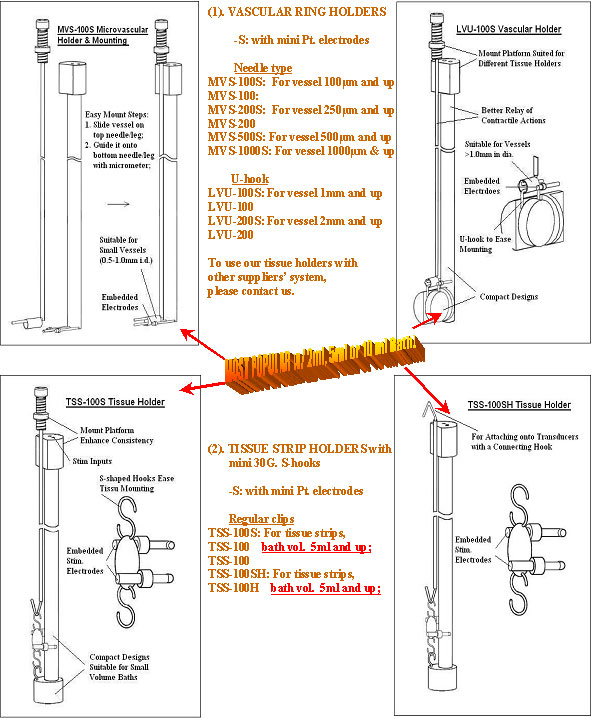

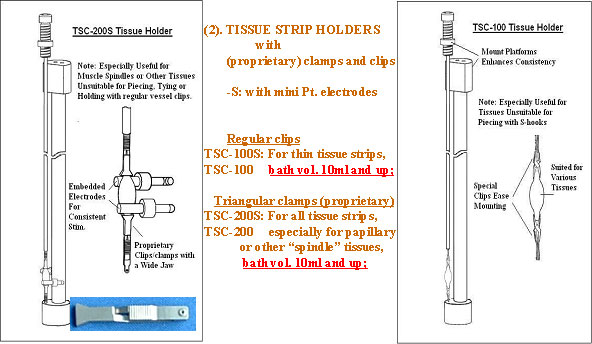

  • TSS, TSW, TSW-R, TSC, TSCH, TSCH-S, and TSCH-Z™ Tissue Holders with or without Pt. stimulation electrodes for strip tissue/organ studies;
    (To study drug kinetics, i.e. intensity, on- and off-rates, etc., or correlate sequential releases and actions for the same tissue or across different tissues, please refer to EZ-Fusion-400, the Tissue Superfusion Bath System).
  • MVS and LVU Tissue Holder series for small or large vascular or other tubular tissues;
    (For micro and small tubular tissues, as small as 60µm, such as mouse heart messenteric or coronary vessels, please refer to EZ-NeWMyo, the proprietary Micro Vessel Needle Myograph and Wire Myograph system).
  • Simultaneous Bio-sensing, Bio-potential Recording options available (please refer to Accessories).

  • 3. Long-term Saving in Reagent/Drug Costs and Competitive System Prices
  • The high-performance, user-friendly systems reduce daily costs of drug/reagents needed and system acquisition costs, e.g., $3000 to $8000 less for a 4-channel system compared to competitions’.

  • In summary, the proven experiment efficiency and consistency achieved with the EZ-Bath systems translate into productive data collections, less experiments needed and ultimate saving in time and resources. For listed comparison charts to other suppliers’ systems, available for potential customers only, please email to .


    Tension and Force Transducers (included)

    i-FOT Series Isometric Force Transducers with max sensitivity of 0.2-0.5mg and range from 0-10 to 0-2000grams. The new SW series have both high sensitivity and wide dynamic range (200,000:1). They’re compatible with our BRAM-4B, i-BRIDGE transducers amplifiers, or BRAMDA-400/800 and i-DAQ 4/8 data acquisition systems. They can also be easily adapted to ADI and other suppliers’ systems. In addition, we also supply i-TFOT Isotonic Force Transducers, fiber-optic based force transducers, mini pressure, temperature sensors, etc.

    2. Bio-sensing, Direct/Field Tissue Stimulation and/or Extracellular Field Potential Recording:

    GlobalTown supplies a series of miniature biosensors that are used seamlessly for simultaneously measuring nitric oxide (NO), dissolved oxygen, glucose, epinephrine, norepinephrine, or bio-potential, etc., near tissue vessel rings under tension, drug perfusion and/or stimulation. This allows studies of interactions between tissue muscle tone and biochemical release or perfusion, e.g. effect of NO-mediated heart tissue injury on muscle tone, or vascular endothelium NO-mediated vessel relaxation, etc. In addition, the direct/field tissue stimulation and/or extracellular field potential recording can be conducted together or separately from the bio-sensing and tissue tension studies, which enables many new experimental protocols.

    The bio-sensors, stimulation and/or recording electrodes are embedded as part of the tissue holding assembly, providing consistency and convenience in the experimental protocols without the need for external positioner. While the optional stimulation Pt. electrodes or recording metal micro electrodes are embedded on tissue holders, bio-sensors are installed on the sensor-, electrical- and drug-enabled tissue Measure & Position Bracket MP-20SED that also allows additional positioning of the bio-sensor. These biosensors come in two basic shapes in relation to the tissues being held: straight or L-shaped, as shown in the following diagrams. To include bio-sensor in your system order, please add “–SED” at the end of the system part number, and then specify what model of biosensor is needed.

    SNO-100, 200 Micro Nitric Oxide Biosensors
    125um in diameter, < 1 sec in response time, detection limit 1nM

    SGLU-100, 200 Micro Glucose Bio-sensors
    Ultra fast < 1sec, 1-1000mM linear range, detection limit 3uM

    For more such as oxygen sensors, see Biosensors and Transducers. Both SNO and SGLU are fast responding electrochemical sensors and need i-POTS 100 Potentiostat , which has a BNC output.

    3. i-DAQChart Software Provides Tissue/Organ Bath Data Acquisition and Analyses

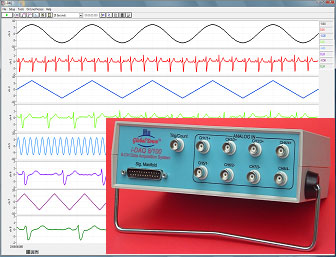

    i-DAQChart data acquisition and analysis software is an integral part of i-DAQ 4/8 or i-DAQTower-16, the portable, connect-and-play, function-rich data acquisition systems. It features real-time recording, effective on-line data smoothing/filtering one-line marking and commenting, automated cyclic measurements, data comparison, transformations, curve fittings and statistics analyses. The integrated i-DAQChart software contains special functions suited for the study and analyses of tissue/organ bath experiments, recorded on i-DAQ or BRAMDA-400/800. Among the important functions are the curve fitting, dose response curve and EC50/IC50, etc.

    i-DAQChart is available on two supported hardware: option #1: BRAM-4B Quad Bridge Amplifier plus i-DAQ 4/8 (4- or 8-ch) or i-DAQTower-16 (16-ch); option #2: BRAMDA-400/800 Quad/Octo Sensor Digital Recorder/Analyzer. As a third option, you can also use your existing software and data acquisition system.

    Option #1 (recommended): BRAM-4B (4-ch) plus i-DAQ 4/8 (4-or 8-ch)
    or i-DAQTower 16 (16-ch)w/ i-DAQChart Software

    In this option, the portable, versatile data acquisition systems, i-DAQ4, i-DAQ8 or i-DAQTower16 with USB 2.0 is added as needed in the 4-, 8- or 16-channel EZ-Bath-4/8/16TBD configuration, which include 1x, 2x, or 4x BRAM-4B low noise quad bridge amplifiers with BNC outputs for i-DAQ or other data acquisition system. NO, O2 or glucose biosensor outputs from i-POTS Biosensor Potentiostat can be recorded and analyzed with i-DAQ as well.

    Option #2: Integrated 4- or 8-ch BRAMDA-400/800 Digital Sensor Record System w/ i-DAQChart Software

    In this option, i-FOT Force Transducers are plugged directly to the integrated system BRAMDA-400/800 with UBS port. In either options, all you need is a computer to start efficient, consistent experiments, recording and data analyses.

    Option #3: Using other data acquisition systems, bridge amplifiers or transducers

    If you’re using or already familiar with another data acquisition software and system, such as PowerLab or MP-150 Acknowledge, our BRAM-4B Bridge Amp outputs are compatible with these systems. Alternatively, our transducers can be adapted by re-wiring the DIN8 connector or using an adapting cable for these systems or other bridge amplifiers. If, however, you would like to use your transducers in the lab, our MP20 Measure and Position Bracket can be modified to accommodate your needs at minimal or no extra charge.
    Please contact us or

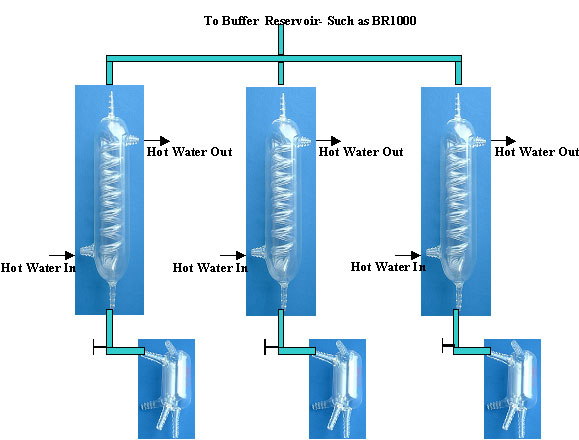

    4. Buffer Pre-warm/Pre-oxygenate System, Water Heating Circulator Bath, etc.

    PORS-2000 (included) Buffer
    Pre-warm/Pre-oxy and Distribution System

    For up to16 baths’ buffer
    pre-warm & oxygenate
    (manifold not shown)

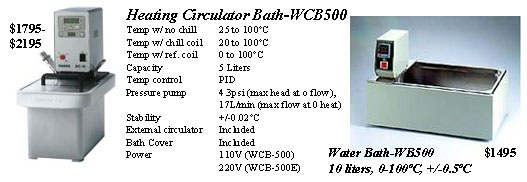

    Heating Circulator Bath WCB-DC10

    Temp w/ no chill 25 to 100ºC
    Temp w/ chill coil 20 to 100ºC
    Temp w/ ref. coil 0 to 100ºC
    Capacity 5 Liters
    Temp control PID
    Pressure pump 4.3psi (max head at o flow), 17L/min (max flow at 0 heat)
    Stability +/-0.02ºC
    External circulator Included
    Bath Cover Included
    Power 110/220V (WCB-DC10/DC10E)
    NOTE: capable to heat 16-32 baths of up to 50ml each.

    Related Products:

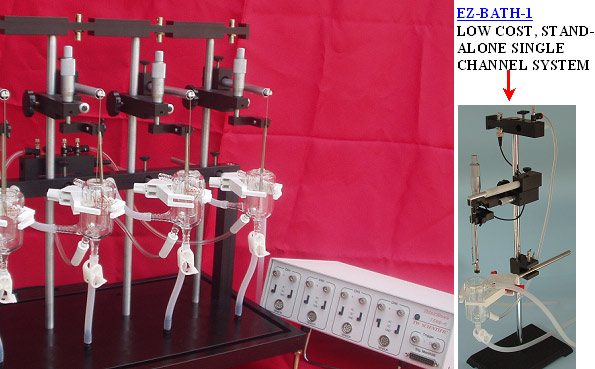

    EZ-BATH-1T One-channel Tissue/Organ Bath System for Student Lab or Low Budget Research Lab
    The low cost, stand alone single channel system is perfect for student lab in biology, physiology and pharmacology courses, with optional i-BRIDGE or BRAM-1B Amp and other accessories.

    EZ-Fusion™400 Tissue Superfusion Bath System for tissue drug dynamics, on/off rates, tissue releases, and labile and trace agents.
    Multi-Channel Needle and Wire Myography System for micro vessels studies down to 60um in sizes.


    Partial List of EZ-Bath and EZ-NeWMyo Systems Publications:

    Murias JM, Campos Oa, Hall KE, McDonald MW, Melling CJ, Noble EG (2012), Vessel-specific rate of vasorelaxation is slower in diabetic rats, Diab. Vasc. Dis. Res., 2012 Sep 4. [E-pub ahead of print]

    Delaney LE, Arce-Esquivel AA, Kuroki K, Laughlin MH (2012), ), Exercise Training Improves Vasoreactivity in the Knee Artery, Int. J. Sports Med, 33(02): 114-122.

    Vida Garaliene V, Barsys V, Mačys A, Vigante B, Krauze A (2011), Effect of 4-aryl-2-methyl-5-nitro-1, 4-dihydropyridine-3-carboxylates on the guinea pig papillary muscle and isolated human vena saphena magna that is used for coronary artery bypass grafting, European Journal of Medicinal Chemistry, 46 (9): 4441–4447.

    Hoogerwerf WA, Shahinian VB, Cornelissen G., Halberg F, Bostwick J, Timm J, Bartell PA, Cassone VM (2010), Rhythmic changes in colonic motility are regulated by period genes, Am J. Physiol. Gastrointest. Liver Physiol., 298(2):G143-50.

    McAllister RM, Newcomer SC, Pope ER, Turk JR, Laughlin MH (2008), Effects of chronic nitric oxide synthase inhibition on responses to acute exercise, J  Appl Physiol, 104: 186-197

    For more publications, please contact us at .
